BETA Panel PC

  • 9.7″ 1024 x 768 resolution TFT LCD
  • IP65 sealed aluminium frame
  • Projected Capacitive or Resistive touch screen
  • 1GHz, dual-core AMD G-Series processor (x86 / x64)
  • 2GB or 4GB low-power DDR3 memory
  • MicroSD, M.2 SATA SSD storage
  • USB 3.0, USB 2.0, LAN, x2 RS232 ports, x1 RS232/422/485 port, SMBUS
  • Stereo audio inputs and outputs, audio amplifier
  • Vertical connectors for panel mounting

Download Datasheet

Buy at RS

Buy at Amazon

Make Enquiry

Product Code: B09CV-0C1A-JE00 Category:

Description

The BETA Panel PC is a pre-integrated touch screen module configuration designed for industrial automation applications and in the upgrade of legacy x64 / x86 systems. Run Windows 10, Ubuntu or Android x86 and just load your existing software to get started.

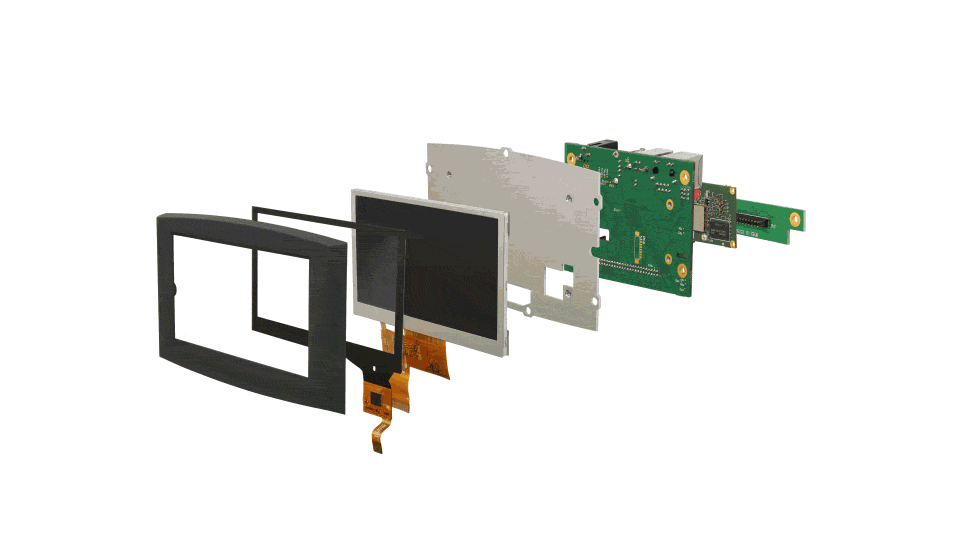

A BETA touch screen HMI is the ideal LCD platform for quickly creating your new touchscreen based product. Each BETA HMI consists of a touch screen, LCD, single board computer, mechanicals and injection moulded bezel together with the relevant approvals and rigorous environmental testing. You just need to add your software to get your new product to market.

Our BETA touch screen platform is designed and manufactured in the UK. It offers great value for money together with excellent engineering and high reliability. We pride ourselves on providing the highest level of technical support so that, if necessary, you have access to information when you need it.

The BETA platform is completely configurable. It allows you to pick the components that match your application more closely, so if this particular pre-selected configuration doesn’t match your requirements then get in touch with us to discover the other options available.

BETA Booklet

Can we buy the Beta units with a different coloured bezel?

Yes, we can supply Beta units with custom coloured bezels subject to a minimum quantity of 100 pieces

Can we design our own PCB with the connectors we require for our product and industry?

Yes. One of our main goals when we designed the Beta range was to enable our customers to design their own PCBs and also include their own circuitry if they wished. Have a look at the Hardware manual to start with for the signals provided on the 50 way 2mm connector. Also look at the 3D CAD files for the dimensions.

Can you provide a custom design service if we choose not to design in house?

Yes. We can. We can also manufacture and test the complete Beta unit and provide a warranty.

Which operating system do you recommend we use with Beta?

It really depends on your experience and what you are trying to achieve. Android is very good in that it has an established development environment (using Java) and the development cycle can be fast as there are many programmers who are experienced with this platform. We provide our own API to provide access to all the interfaces that Android does not normally support (ever seen an RS232, RS485, I2C or Ethernet port on a mobile phone?) to make as easy possible for you. Linux does not have the constraints of Android in that it gives you incredible freedom to create your unique development environment and tools. If you have the necessary experience then Linux can be a great basis for a new product design and Ubuntu is one of the most popular flavours.

DOCUMENTATION

File Name Description Download
BETA Panel PC datasheet Datasheet for the BETA Panel PC starter configuration. 568.42 KB
XE1 Technical User Guide Technical user guide for the XE1 single board computer, including information regarding the support of touch screens. 1.51 MB



CPU
CPU Manufacturer AMD
CPU Series G Series
CPU Speed 1.0GHz
CPU Details L2 Cache
CPU Cores Dual Core
Memory
RAM 2GB
4GB
Connectivity
Inputs / Outputs GPIO
RF Comms Bluetooth 4.0
Bluetooth BLE
GSM
Wi-Fi 802.11 abgn
Serial Comms Ethernet 10/100/1000 (Gigabit)
RS232
RS232/422/485
SATA
SMBus
USB 2.0
USB 3.0
Audio / Visual
Audio Class-D amplifier
Stereo Inputs and Outputs
Graphics AMD Radeon R1E
DirectX 11.2
Display Integrated
Touch Projected Capacitive
Resistive
LCD Size 9.7″
Miscellanneous
Operating System Android x86
Linux – Ubuntu
Windows 10
Temperature 0° to 50° C
Power Supply 12 Volts DC
Sealing IP65
